[APIM 10.7] Create Subscriptions Application

• Reference
• Elasticsearch API
• https://esbook.kimjmin.net/05-search/5.1-query-dsl (match_phrase)
• https://www.elastic.co/guide/en/elasticsearch/reference/current/docs-update.html (doc_as_upsert)

• Setting

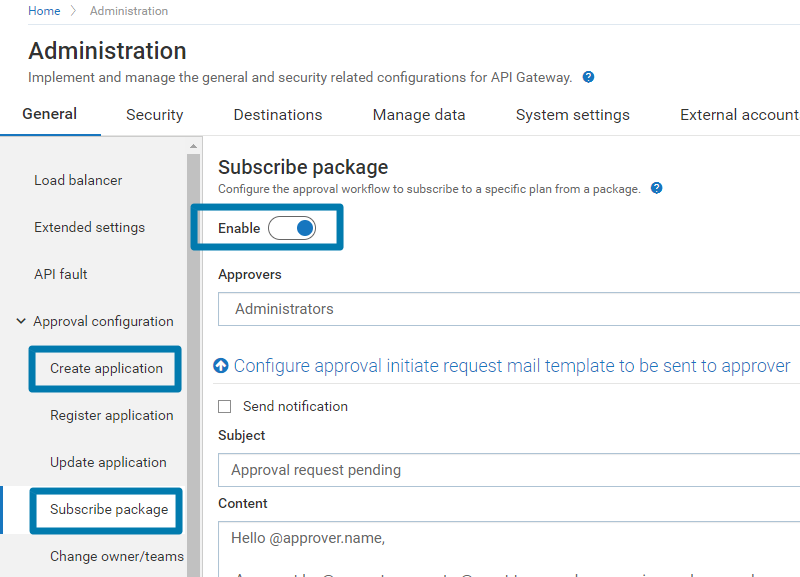

• Approval configuration
• Create application > Enable
• Subscribe package > Enable

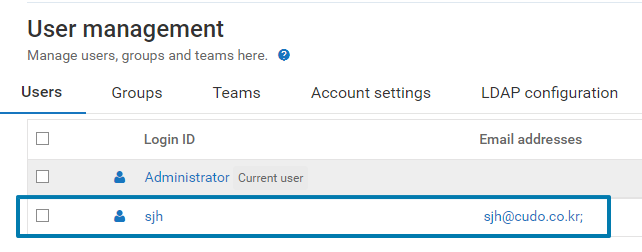

• User management ( create new User )

• STEP1. Create Subscription request

• Request

• Request Header

• Authorization : Basic Base64Encode(sjh2 : sjh2)

• Request Body ( JSON )

{
    "applicationName": "Application_PSTM_2",
    "packageId": "f368a77f-cca2-424e-82d0-4e3e2356859d",
    "planId": "2a2af9d5-9c02-4a8e-9dd6-9712fe72be19",
    "requesterId": "newOwner123123",
    "applicationDescription": "desc",
    "otherRequesterDetails": {},
    "redirectURIs": [
        "http://192.168.1.143:5555/"
    ],
    "requesterComment": "laborum commodo dolore deserunt",
    "requesterEmail": "nisi ul",
    "requesterFirstName": "est sed ut nulla",
    "requesterLastName": "mollit ipsum eiusmod",
    "requesterName": "pending_request_name"
}

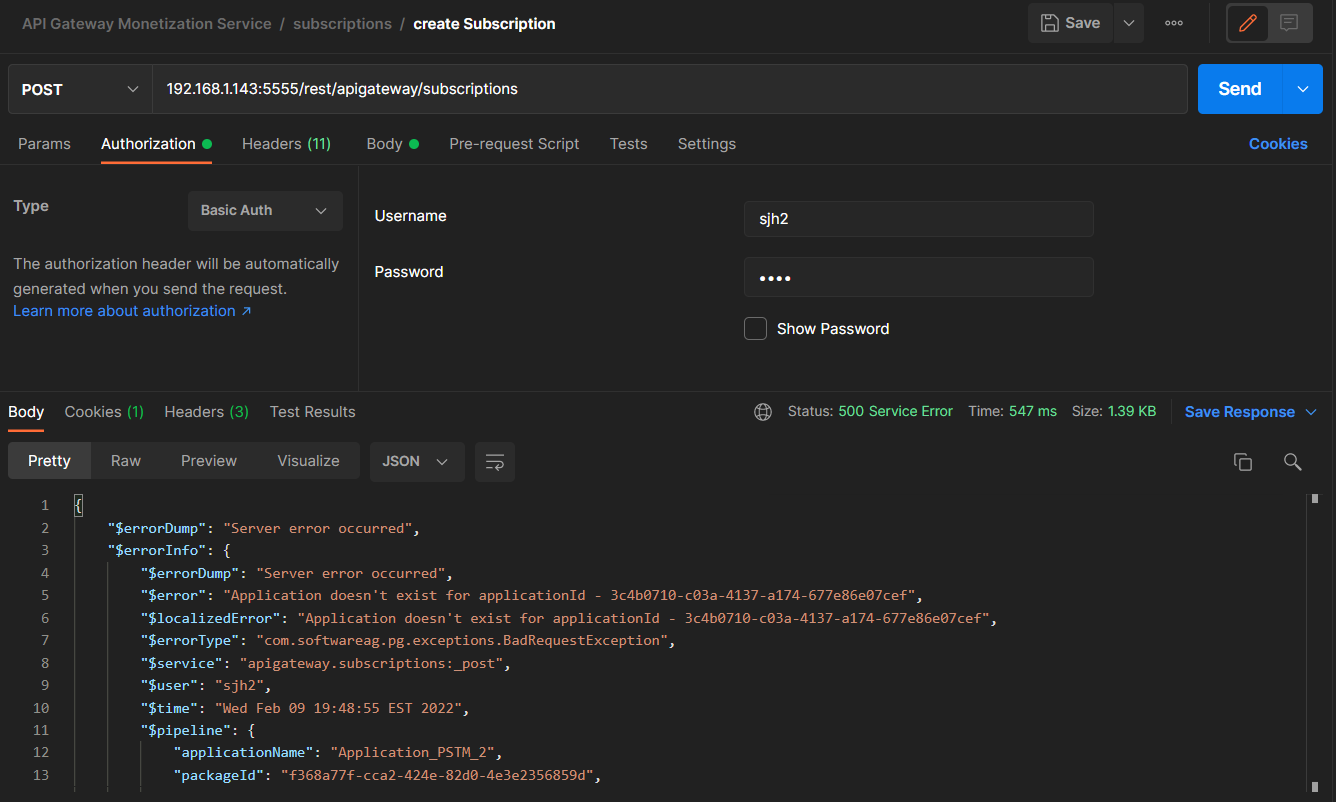

• Response
• 500 Service Error

{
    "$errorDump": "Server error occurred",
    "$errorInfo": {
        "$errorDump": "Server error occurred",
        "$error": "Application doesn't exist for applicationId - 3c4b0710-c03a-4137-a174-677e86e07cef",
        "$localizedError": "Application doesn't exist for applicationId - 3c4b0710-c03a-4137-a174-677e86e07cef",
        "$errorType": "com.softwareag.pg.exceptions.BadRequestException",
        "$service": "apigateway.subscriptions:_post",
        "$user": "sjh2",
        "$time": "Wed Feb 09 19:48:55 EST 2022",
        "$pipeline": {
            "applicationName": "Application_PSTM_2",
            "packageId": "f368a77f-cca2-424e-82d0-4e3e2356859d",
            "planId": "2a2af9d5-9c02-4a8e-9dd6-9712fe72be19",
            "requesterId": "newOwner123123",
            "applicationDescription": "desc",
            "otherRequesterDetails": {},
            "redirectURIs": [
                "http://192.168.1.143:5555/"
            ],
            "requesterComment": "laborum commodo dolore deserunt",
            "requesterEmail": "nisi ul",
            "requesterFirstName": "est sed ut nulla",
            "requesterLastName": "mollit ipsum eiusmod",
            "requesterName": "pending_request_name"
        },
        "$callStack": "[ >>>$service=apigateway.subscriptions:createSubscription, $currentPath=<<< ,  >>>$service=apigateway.subscriptions:_post, $currentPath=/0<<< ]"
    },
    "$error": "Application doesn't exist for applicationId - 3c4b0710-c03a-4137-a174-677e86e07cef",
    "$errorType": "com.softwareag.pg.exceptions.BadRequestException"
}

• STEP2. Search Approval Request
• {GW_IP}:9240/gateway_default_approvalrequest-000001/_search
• Step1. Search application id ( use "approvalEventPayloadAsString" )

• Request

• Request Body (JSON)

{
    "query" : {
        "match_phrase":{
            "approvalEventPayloadAsString" : "3c4b0710-c03a-4137-a174-677e86e07cef"
        }
    }
}

• Response

{
    "took": 11,
    "timed_out": false,
    "_shards": {
        "total": 1,
        "successful": 1,
        "skipped": 0,
        "failed": 0
    },
    "hits": {
        "total": {
            "value": 1,
            "relation": "eq"
        },
        "max_score": 1.4510403,
        "hits": [
            {
                "_index": "gateway_default_approvalrequest-000001",
                "_type": "_doc",
                "_id": "0cabb128-388b-4b41-a2a8-9dcf78be0340",
                "_score": 1.4510403,
                "_source": {
                    "id": "0cabb128-388b-4b41-a2a8-9dcf78be0340",
                    "approversGroupId": "Administrators",
                    "approvalEvent": "subscribePackage",
                    "requestorId": "sjh2",
                    "requestorName": "sjh2",
                    "requestorFirstName": "sjh2",
                    "requestorLastName": "sjh2",
                    "requestorMail": "sjh2@cudo.co.kr",
                    "mode": "anyone",
                    "created": "1644454134999",
                    "lastUpdated": "1644454134999",
                    "status": "pending",
                    "requesterComment": "",
                    "approvalEventPayloadAsString": "{\"owner\":\"\",\"isSuspended\":false,\"teams\":[],\"identifiers\":[],\"packageId\":\"f368a77f-cca2-424e-82d0-4e3e2356859d\",\"description\":\"\",\"planName\":\"PLAN4\",\"subscription\":true,\"jsOrigins\":[],\"version\":\"1.0\",\"authStrategyIds\":[\"20102d2f-9ec8-4b27-84f0-60e24bb56e09\"],\"lastUpdated\":0,\"siteURLs\":[],\"provider\":\"APIPORTAL\",\"shell\":false,\"name\":\"\",\"planId\":\"2a2af9d5-9c02-4a8e-9dd6-9712fe72be19\",\"packageName\":\"Package4\",\"applicationID\":\"3c4b0710-c03a-4137-a174-677e86e07cef\"}",
                    "approvers": [
                        {
                            "id": "Administrator",
                            "name": "Administrator",
                            "firstName": "Administrator",
                            "lastName": "",
                            "status": "pending"
                        }
                    ],
                    "properties": {
                        "planName": "PLAN4",
                        "packageName": "Package4",
                        "approvalEventType": "subscribePackage"
                    }
                }
            }
        ]
    }
}

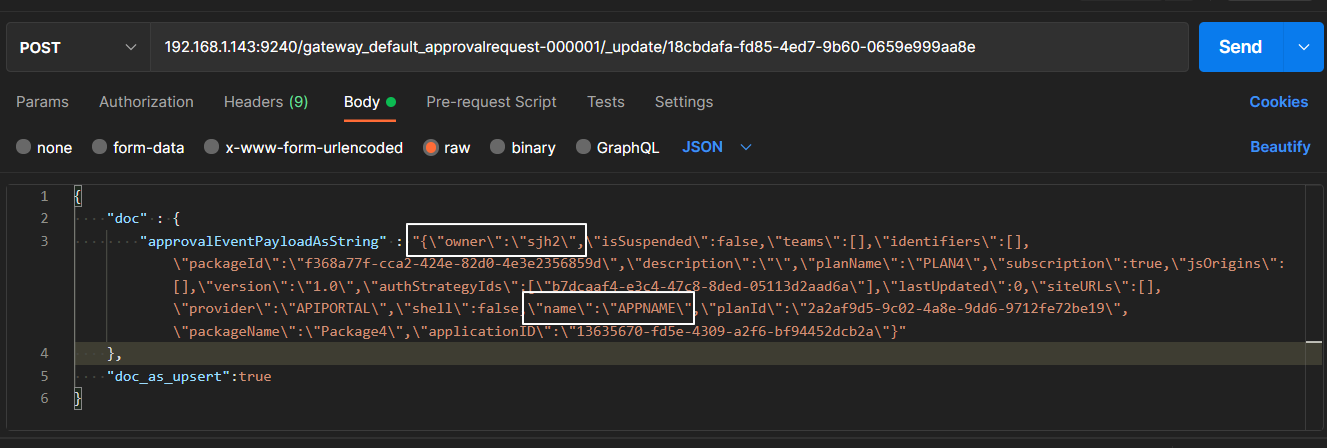

• STEP3. Upsert Approval Request new data
• {GW_IP}:9240/gateway_default_approvalrequest-000001/_update/{approval request id}
• ex ) 192.168.1.143:9240/gateway_default_approvalrequest-000001/_update/0cabb128-388b-4b41-a2a8-9dcf78be0340

• edit approvalEventPayloadAsString > Owner, Name

"{\"owner\":\"\",\"isSuspended\":false,\"teams\":[],\"identifiers\":[],\"packageId\":\"f368a77f-cca2-424e-82d0-4e3e2356859d\",\"description\":\"\",\"planName\":\"PLAN4\",\"subscription\":true,\"jsOrigins\":[],\"version\":\"1.0\",\"authStrategyIds\":[\"f130e258-0ec8-4fe4-9775-fb14aba2eb4b\"],\"lastUpdated\":0,\"siteURLs\":[],\"provider\":\"APIPORTAL\",\"shell\":false,\"name\":\"\",\"planId\":\"2a2af9d5-9c02-4a8e-9dd6-9712fe72be19\",\"packageName\":\"Package4\",\"applicationID\":\"d7eb7dab-1603-4871-a503-8b4a46c6bc37\"}"

• Request

• owner : new owner
• name : AppName

• Request Body (JSON)

{
    "doc" : {
        "approvalEventPayloadAsString" : "{\"owner\":\"sjh2\",\"isSuspended\":false,\"teams\":[],\"identifiers\":[],\"packageId\":\"f368a77f-cca2-424e-82d0-4e3e2356859d\",\"description\":\"\",\"planName\":\"PLAN4\",\"subscription\":true,\"jsOrigins\":[],\"version\":\"1.0\",\"authStrategyIds\":[\"f130e258-0ec8-4fe4-9775-fb14aba2eb4b\"],\"lastUpdated\":0,\"siteURLs\":[],\"provider\":\"APIPORTAL\",\"shell\":false,\"name\":\"\",\"planId\":\"2a2af9d5-9c02-4a8e-9dd6-9712fe72be19\",\"packageName\":\"Package4\",\"applicationID\":\"d7eb7dab-1603-4871-a503-8b4a46c6bc37\"}"
    },
    "doc_as_upsert":true
}

• Response

{
    "_index": "gateway_default_approvalrequest-000001",
    "_type": "_doc",
    "_id": "7913aee4-f600-4cd2-914a-5d42df337d2b",
    "_version": 2,
    "result": "updated",
    "_shards": {
        "total": 2,
        "successful": 1,
        "failed": 0
    },
    "_seq_no": 183,
    "_primary_term": 6
}
