<1> API Tracing 각 단계 로깅, 실패 확인
1. IS 서비스 설정
insert_elasticsearch_1~5 까지 생성
- MAP
- request_id (request 별 id 값을 저장) : 001로 Test
- apiName (APIs 의 name값) : BANK-001
- status (상태 값 , Test에서는 policy 경로 이름을 명명하였음)
- _1 identify_access
- _2 request_processing
- _3 routing
- _4 response_processing
- current_time (getCurrentDateString)
- client.http
- url (elasticsearch request url) : http://192.168.1.130:9240/logging_data2/_doc/ 로 테스트
- method : post
- put method로 elasticsearch에 입력이 가능하지만 id값을 특정 지어 url 뒤에 붙여야 함
- pub.apigateway.invokeISService.specifications:RequestSpec 로 input값을 지정 시에 flow 에서 currentID값을 id값으로 지정하여 url : http://192.168.1.130:9240/logging_data2/_doc/(currentID)값 으로 입력하면 가능할 수도..
- data : documentToJSONString 에서 생성된 jsonString을 매핑
- auth : user > Administrator // pass > manage
- headers : content-Type > application/json
같은 방법으로 insert_elasicsearch_1~4 까지 생성
2. Gateway Policy 설정
+) Comply To Spec을 True로 설정 후 테스트 시에 정상 호출 시 마지막 log 인 Response Processing 만 남음,
중간 Request 단계에서 오류를 발생 시켰을 때 IS service 를 invoke 하지 않아 Logging 이 안되는 문제가 있음
3. Elasticsearch 설정
내부 Elasticsearch 에 로그를 받을 Index를 생성 (logging_data2 생성)
+) 인덱스 삭제
4. 호출 테스트
- 정상 호출 시 log
http://192.168.1.130:9240/logging_data2/_search
결과 값
{"took": 0,"timed_out": false,"_shards": {"total": 1,"successful": 1,"skipped": 0,"failed": 0},"hits": {"total": {"value": 4,"relation": "eq"},"max_score": 1.0,"hits": [{"_index": "logging_data2","_type": "_doc","_id": "D83lGXgBLr9HF4rsAS82","_score": 1.0,"_source": {"request_id": "001","apiName": "BANK-001","status": "Identify_Access","current_time": "170901"}},{"_index": "logging_data2","_type": "_doc","_id": "EM3lGXgBLr9HF4rsAS88","_score": 1.0,"_source": {"request_id": "001","apiName": "BANK-001","status": "RequestProcessing","current_time": "170901"}},{"_index": "logging_data2","_type": "_doc","_id": "Ec3lGXgBLr9HF4rsAS9J","_score": 1.0,"_source": {"request_id": "001","apiName": "BANK-001","status": "Routing","current_time": "170901"}},{"_index": "logging_data2","_type": "_doc","_id": "Es3lGXgBLr9HF4rsAS9g","_score": 1.0,"_source": {"request_id": "001","apiName": "BANK-001","status": "ResponseProcessing","current_time": "170901"}}]}}

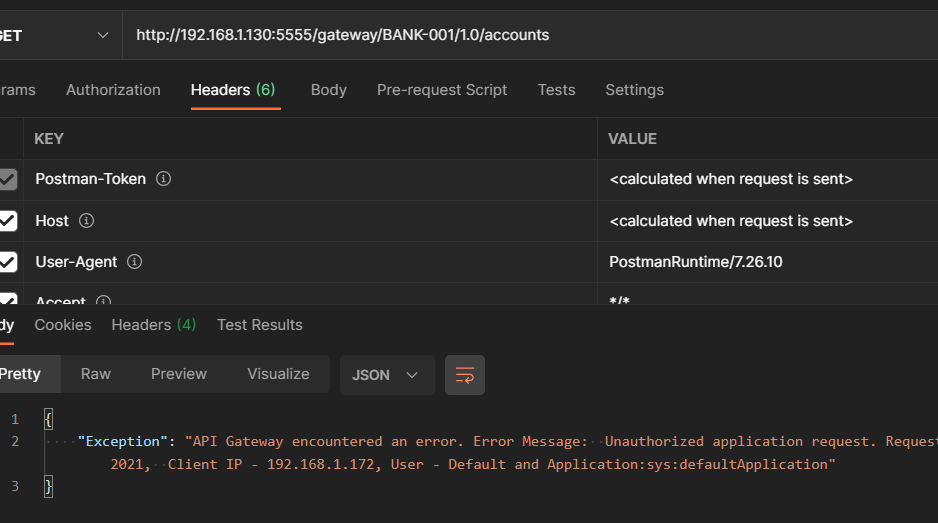

- Identify_Access Error 시에
{"took": 0,"timed_out": false,"_shards": {"total": 1,"successful": 1,"skipped": 0,"failed": 0},"hits": {"total": {"value": 1,"relation": "eq"},"max_score": 1.0,"hits": [{"_index": "logging_data2","_type": "_doc","_id": "GM3mGXgBLr9HF4rsyi9B","_score": 1.0,"_source": {"request_id": "001","apiName": "BANK-001","status": "Identify_Access","current_time": "171058"}}]}}
+)

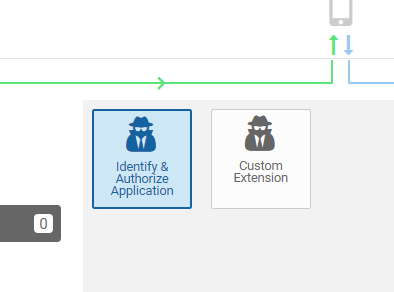

Policy 설정 시 순서를 변경 시키면
{"took": 0,"timed_out": false,"_shards": {"total": 1,"successful": 1,"skipped": 0,"failed": 0},"hits": {"total": {"value": 0,"relation": "eq"},"max_score": null,"hits": []}}

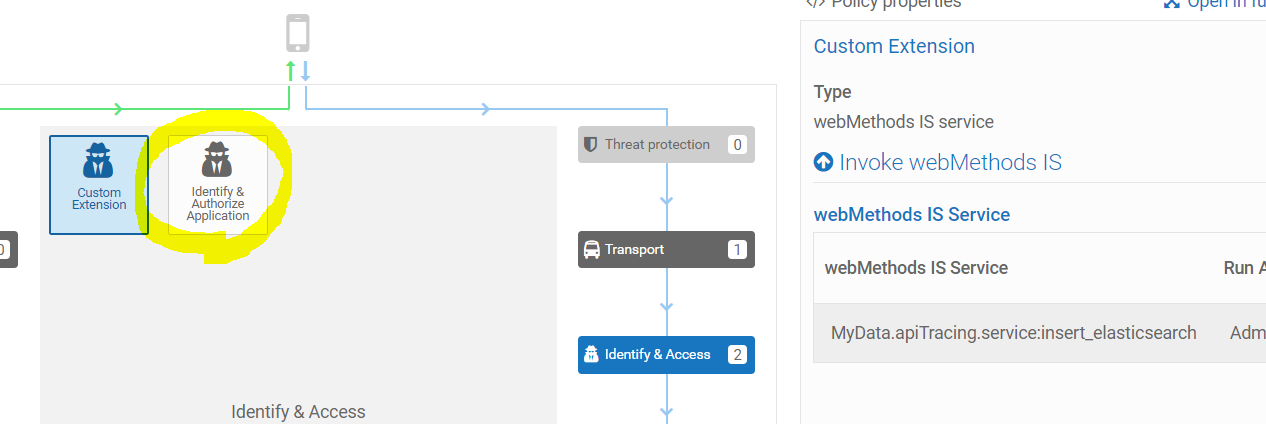

호출 시에 identify 에서 error가 발생하여 custom extension이 실행되지 않음
=> policy 설정 순서에 영향을 받는 듯
- Request Processing 에서 Error 발생
{"took": 0,"timed_out": false,"_shards": {"total": 1,"successful": 1,"skipped": 0,"failed": 0},"hits": {"total": {"value": 2,"relation": "eq"},"max_score": 1.0,"hits": [{"_index": "logging_data2","_type": "_doc","_id": "HM3qGXgBLr9HF4rsKC_k","_score": 1.0,"_source": {"request_id": "001","apiName": "BANK-001","status": "Identify_Access","current_time": "171439"}},{"_index": "logging_data2","_type": "_doc","_id": "Hc3qGXgBLr9HF4rsKC_t","_score": 1.0,"_source": {"request_id": "001","apiName": "BANK-001","status": "RequestProcessing","current_time": "171439"}}]}}
+) Policy 설정 순서를 바꾸어 테스트 시
{"took": 591,"timed_out": false,"_shards": {"total": 1,"successful": 1,"skipped": 0,"failed": 0},"hits": {"total": {"value": 1,"relation": "eq"},"max_score": 1.0,"hits": [{"_index": "logging_data2","_type": "_doc","_id": "Is3rGXgBLr9HF4rsuy_f","_score": 1.0,"_source": {"request_id": "001","apiName": "BANK-001","status": "Identify_Access","current_time": "171622"}}]}}
- Rountig 에서 Error 발생 시킬 때
{"took": 0,"timed_out": false,"_shards": {"total": 1,"successful": 1,"skipped": 0,"failed": 0},"hits": {"total": {"value": 3,"relation": "eq"},"max_score": 1.0,"hits": [{"_index": "logging_data2","_type": "_doc","_id": "KM3tGXgBLr9HF4rsvC_F","_score": 1.0,"_source": {"request_id": "001","apiName": "BANK-001","status": "Identify_Access","current_time": "171834"}},{"_index": "logging_data2","_type": "_doc","_id": "Kc3tGXgBLr9HF4rsvC_N","_score": 1.0,"_source": {"request_id": "001","apiName": "BANK-001","status": "RequestProcessing","current_time": "171834"}},{"_index": "logging_data2","_type": "_doc","_id": "Ks3tGXgBLr9HF4rsvC_Y","_score": 1.0,"_source": {"request_id": "001","apiName": "BANK-001","status": "Routing","current_time": "171834"}}]}}
+) 순서를 바꾸면 Routing 이 IS service 가 Invoke 되지 않음
추가 스터디 자료 정리
- request_id 값에 들어갈 id를 발생 시키는 방법, 매핑 하는 방법 생각하기
- apiName 도 마찬가지로 강제 입력한 값이 아닌 입력 받을 것인지, 불러와서 input값으로 설정할 것인지 생각해보기
- Comply to IS Spec (pub.apigateway.invokeISService.specifications)을 이용하면 savePipelineToFile 서비스를 이용하여 txt 파일을 찍어 냈을 때 corrcetionID값이 이어 지는 것을 확인 할 수 있는데, 이 값을 id 값으로 이용할 수 있는지 테스트..(true 설정 시 logging이 안되.. 어떻게 해결 해야 할지..)
<2> Response Processing 에서 Errorcode Logging
+) Error 코드 Response Processing 화면에서 추가
예시 서비스 구현
(BANK-001 API 예시)
- Try Sequence 쪽 MAP
- code (document)
- http_code : 200
- rsp_code : 00000
- rsp_msg : 성공
- description : 처리 성공
- Catch Sequence 쪽 MAP -> getLastError의 error 필드와 errorDump 필드를 이용해서 Error_doc 를 Response 받는다고 가정
- Error_doc (document)
- http_code : 400 Error로 가정
- rsp_code : 40101 로 가정
- rsp_msg : error 메세지로 가정
- description : errorDump 로 가정
Response Processing Custom Extension 설정
- 예시 IS 서비스 수정 (insert_elasticsearch_Error_2)

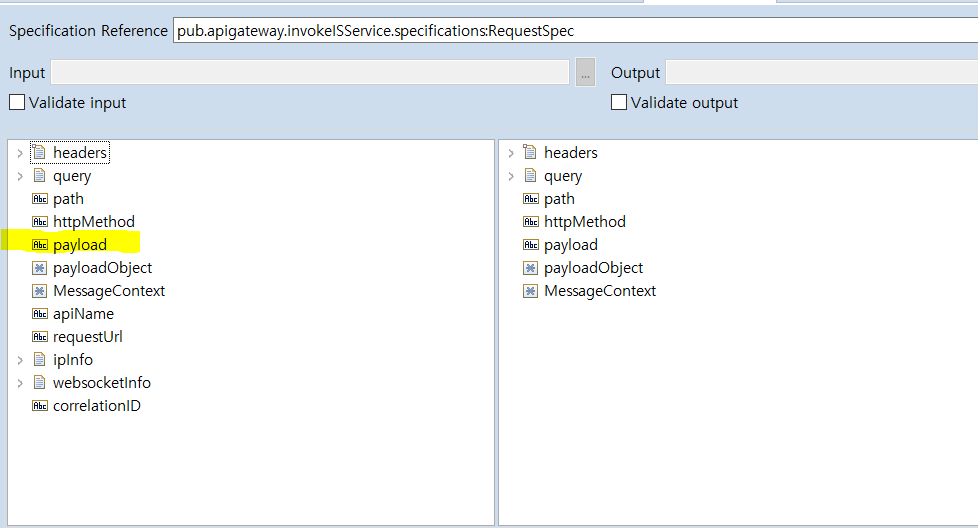

Specification Reference : pub.apigateway.invokeISService.specifications:RequestSpec 로 설정
- Gateway Custom Extension 수정

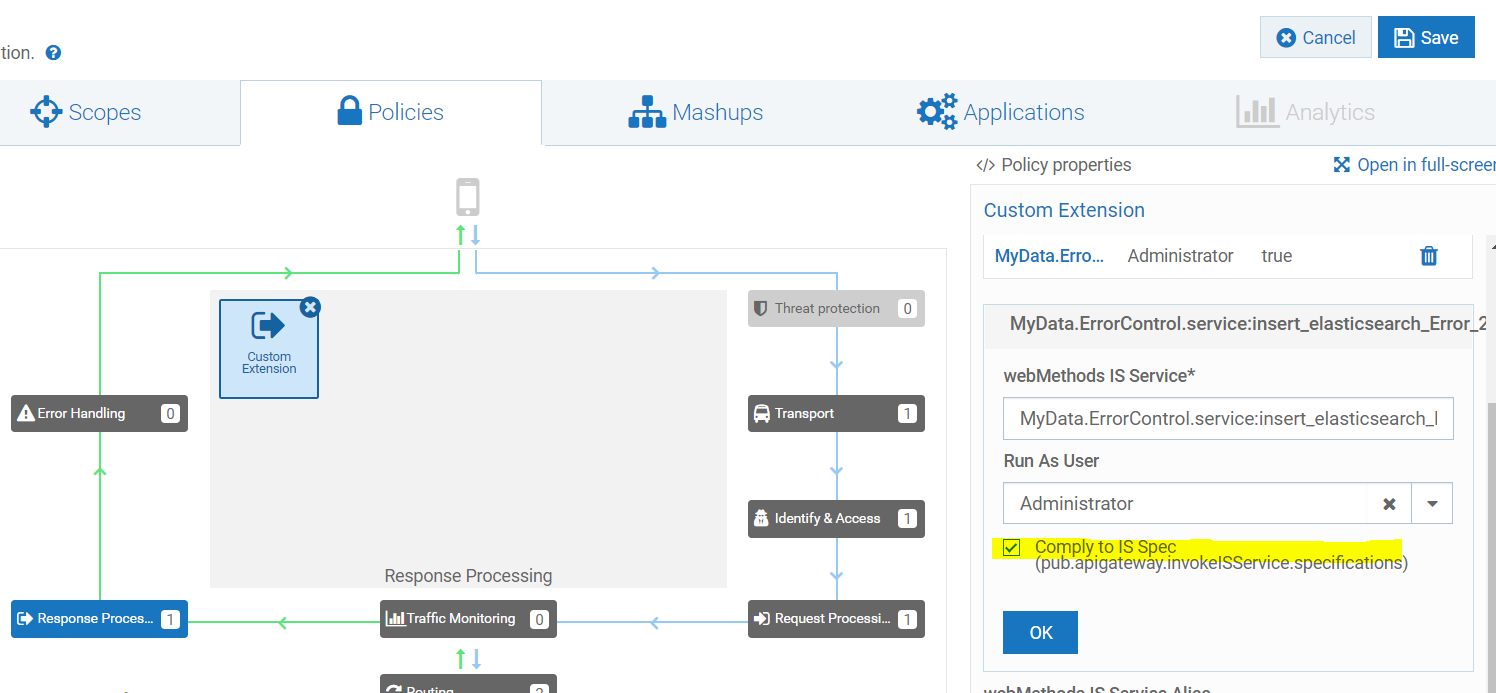

Gateway 설정에서 Comply to IS Spec : true
기존 Invoke IS 서비스를 (insert_elasticsearch_Error_2) 로 변경
Payload 값을 분기로 Exception이 포함되어있으면 Error Logging 처리(예시) // default로는 성공 Logging 처리
- Elasticsearch 설정
{"settings":{"number_of_shards" :1,"number_of_replicas":1},"mappings": {"properties": {"apiName": {"type": "text"},"current_time": {"type": "text"},"request_id": {"type": "text"},"status": {"type": "text"},"error_msg" : {"type":"nested"}}}}
- 호출 테스트
4-1. 정상 호출 시
Logging Index(logging_data2) 결과 값
{"took": 0,"timed_out": false,"_shards": {"total": 1,"successful": 1,"skipped": 0,"failed": 0},"hits": {"total": {"value": 4,"relation": "eq"},"max_score": 1.0,"hits": [{"_index": "logging_data2","_type": "_doc","_id": "VCDnJHgBMbvGprlb-sJi","_score": 1.0,"_source": {"request_id": "001","apiName": "BANK-001","status": "Identify_Access","current_time": "202805"}},{"_index": "logging_data2","_type": "_doc","_id": "VSDnJHgBMbvGprlb-sJn","_score": 1.0,"_source": {"request_id": "001","apiName": "BANK-001","status": "RequestProcessing","current_time": "202805"}},{"_index": "logging_data2","_type": "_doc","_id": "ViDnJHgBMbvGprlb-sJz","_score": 1.0,"_source": {"request_id": "001","apiName": "BANK-001","status": "Routing","current_time": "202806"}},{"_index": "logging_data2","_type": "_doc","_id": "VyDnJHgBMbvGprlb-sJ5","_score": 1.0,"_source": {"request_id": "001","apiName": "BANK-001","status": "ResponseProcessing","current_time": "202806","error_msg": {"code": {"http_code": "200","rsp_code": "00000","rsp_msg": "성공","description": "호출성공"},"result": "0","status": "Success","계좌목록": {"계좌번호1": "110-176-068697","계좌번호2": "110-252-352612","계좌번호3": "110-235-126236"}}}}]}}
4-2 에러 발생 시
Logging Index(logging_data2) 결과 값
{"took": 0,"timed_out": false,"_shards": {"total": 1,"successful": 1,"skipped": 0,"failed": 0},"hits": {"total": {"value": 4,"relation": "eq"},"max_score": 1.0,"hits": [{"_index": "logging_data2","_type": "_doc","_id": "WCDpJHgBMbvGprlbacJ4","_score": 1.0,"_source": {"request_id": "001","apiName": "BANK-001","status": "Identify_Access","current_time": "202939"}},{"_index": "logging_data2","_type": "_doc","_id": "WSDpJHgBMbvGprlbacJ-","_score": 1.0,"_source": {"request_id": "001","apiName": "BANK-001","status": "RequestProcessing","current_time": "202939"}},{"_index": "logging_data2","_type": "_doc","_id": "WiDpJHgBMbvGprlbacKL","_score": 1.0,"_source": {"request_id": "001","apiName": "BANK-001","status": "Routing","current_time": "202939"}},{"_index": "logging_data2","_type": "_doc","_id": "WyDpJHgBMbvGprlbacKQ","_score": 1.0,"_source": {"request_id": "001","apiName": "BANK-001","status": "Error","current_time": "202939","error_msg": {"http_code": "400(Bad Request)","rsp_code": "40101","rsp_msg": "java.lang.NumberFormatException: b","description": "com.wm.app.b2b.server.ServiceException: java.lang.NumberFormatException: b\n\tat pub.math.addInts(math.java:427)\n\tat sun.reflect.GeneratedMethodAccessor69.invoke(Unknown Source)\n\tat sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)\n\tat java.lang.reflect.Method.invoke(Method.java:498)\n\tat com.wm.app.b2b.server.JavaService.baseInvoke(JavaService.java:411)\n\tat com.wm.app.b2b.server.invoke.InvokeManager.process(InvokeManager.java:739)\n\tat com.wm.app.b2b.server.util.tspace.ReservationProcessor.process(ReservationProcessor.java:46)\n\tat com.wm.app.b2b.server.invoke.StatisticsProcessor.process(StatisticsProcessor.java:61)\n\tat com.wm.app.b2b.server.invoke.ServiceCompletionImpl.process(ServiceCompletionImpl.java:250)\n\tat com.wm.app.b2b.server.invoke.ValidateProcessor.process(ValidateProcessor.java:56)\n\tat com.wm.app.b2b.server.invoke.PipelineProcessor.process(PipelineProcessor.java:178)\n\tat com.wm.app.b2b.server.ACLManager.process(ACLManager.java:334)\n\tat com.wm.app.b2b.server.invoke.DispatchProcessor.process(DispatchProcessor.java:41)\n\tat com.wm.app.b2b.server.AuditLogManager.process(AuditLogManager.java:401)\n\tat com.wm.app.b2b.server.invoke.InvokeManager.invoke(InvokeManager.java:611)\n\tat com.wm.app.b2b.server.invoke.InvokeManager.invoke(InvokeManager.java:423)\n\tat com.wm.app.b2b.server.invoke.InvokeManager.invoke(InvokeManager.java:381)\n\tat com.wm.app.b2b.server.ServiceManager.invoke(ServiceManager.java:253)\n\tat com.wm.app.b2b.server.BaseService.invoke(BaseService.java:236)\n\tat com.wm.lang.flow.FlowInvoke.invoke(FlowInvoke.java:267)\n\tat com.wm.lang.flow.FlowState.invokeNode(FlowState.java:668)\n\tat com.wm.lang.flow.FlowState.step(FlowState.java:534)\n\tat com.wm.lang.flow.FlowState.invoke(FlowState.java:501)\n\tat com.wm.app.b2b.server.FlowSvcImpl.baseInvoke(FlowSvcImpl.java:1150)\n\tat com.wm.app.b2b.server.invoke.InvokeManager.process(InvokeManager.java:739)\n\tat com.wm.app.b2b.server.util.tspace.ReservationProcessor.process(ReservationProcessor.java:46)\n\tat com.wm.app.b2b.server.invoke.StatisticsProcessor.process(StatisticsProcessor.java:61)\n\tat com.wm.app.b2b.server.invoke.ServiceCompletionImpl.process(ServiceCompletionImpl.java:250)\n\tat com.wm.app.b2b.server.invoke.ValidateProcessor.process(ValidateProcessor.java:56)\n\tat com.wm.app.b2b.server.invoke.PipelineProcessor.process(PipelineProcessor.java:178)\n\tat com.wm.app.b2b.server.ACLManager.process(ACLManager.java:334)\n\tat com.wm.app.b2b.server.invoke.DispatchProcessor.process(DispatchProcessor.java:41)\n\tat com.wm.app.b2b.server.AuditLogManager.process(AuditLogManager.java:401)\n\tat com.wm.app.b2b.server.invoke.InvokeManager.invoke(InvokeManager.java:611)\n\tat com.wm.app.b2b.server.invoke.InvokeManager.invoke(InvokeManager.java:423)\n\tat com.wm.app.b2b.server.invoke.InvokeManager.invoke(InvokeManager.java:381)\n\tat com.wm.app.b2b.server.HTTPInvokeHandler._process(HTTPInvokeHandler.java:267)\n\tat com.wm.app.b2b.server.RESTHandlerV2.process(RESTHandlerV2.java:146)\n\tat com.wm.app.b2b.server.HTTPDispatch.handleRequest(HTTPDispatch.java:223)\n\tat com.wm.app.b2b.server.Dispatch.run(Dispatch.java:430)\n\tat com.wm.util.pool.PooledThread.run(PooledThread.java:134)\n\tat java.lang.Thread.run(Thread.java:748)\nCaused by: java.lang.NumberFormatException: b\n\tat pub.math.addInts(math.java:414)\n\t... 41 more\n"}}}]}}
