1. Nginx 구성 ( 192.168.1.172 ) < - > GW 10.7 ( 192.168.1.48 )

개념 정리

설치




  1. /etc/nginx/nginx.conf 설정


  • ssl-bundle.crt : 체인인증서
    • 체인인증서에는 rootCA.crt , client_private.crt, server_private.crt 세개를 합쳐서 만듬
    • 생성 명령어 : cat rootCA.crt client_private.crt server_private.crt > ssl-bundle.crt
  • server_private.key : server 개인 Key

  • 주의 사항 : nginx 설정 변경 후 restart 필요 , 이전 설정이 안 바뀌어 있음
    • service nginx restart : nginx restart 명령어
    • nginx -t : 설정파일 reload 명령어





  1. Postman 설정 및 호출


  • Certification 설정

>> Client로 하면 안되고... Server로 하면 되는.. 아마 Nginx에서 설정한 Key 값에 따라 바뀌나..??

<기존 설정 백업>


-> 기존 하지헌 부장님 인증서로 호출 시에 사용한 client_ks.p12 파일이 아마
server_private.key 값과 client_private.key 값의 키 쌍으로 생성한 인증서? 가.. 아닐까 생각 됨...




  • 호출 후 Monitoring 을 통해 Header 값으로 SerialNumber 가 들어왔음을 확인


=> 왜 TLSv 1.2 로... 나오는지 ?

※ TLS 1.3 vs TLS 1.2


=> 하지헌 부장님 인증서로 호출 시 자료

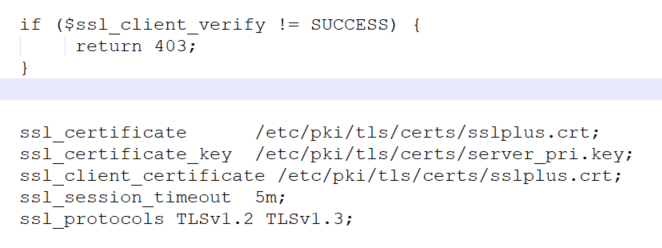

추가 정리 자료 nginx 인증서 설정 부분 (/etc/nginx/nginx.conf)


ssl-bundle 로 구성한 인증서 순서에 영향을 받는 듯
이후 ssl_client_certificate 에 체인 인증서로 등록할 때 어떻게 해야 하는지 테스트..??

  1. ssl-bundle.crt
    • ssl_certificate : cat server_private.crt client_private.crt rootCA.crt > ssl-bundle.crt
    • ssl_certificate_key : server_private.key
    • ssl_client_certificate : ssl-bundle.crt ( server , client , rootCA 순서로 cat)

    • Postman 호출 시 server_private.crt / server_private.key 사용 호출 성공


  1. ssl-bundle2.crt
    • ssl_certificate : cat client_private.crt server_private.crt rootCA.crt > ssl-bundle.crt
    • ssl_certificate_key : client_private.key
    • ssl_client_certificate : ssl-bundle2.crt ( client, server , rootCA 순서로 cat )

    • Postman 호출 시 client_private.crt / client_private.key 사용 호출 성공

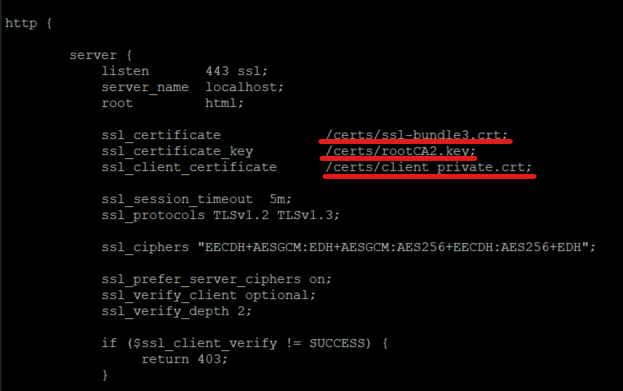

  1. ssl-bundle3.crt -> 이 설정이 그나마.. 맞는 설정이 아닐까 싶음
    • ssl_certificate : cat rootCA.crt server_private.crt client_private.crt > ssl-bundle.crt
    • ssl_certificate_key : rootCA2.key
    • ssl_client_certificate : client_private.crt


    • Postman 호출 시 client_private.crt / client_private.key 사용 호출 성공
    • ssl-cleint_certificate 에 server_private.crt 로 바꾸고
    • Postman 에서 server 인증서 키로 호출시 호출 성공
    • 바꿔서는 또 안됨...

>>>>> ssl_client_certificate 부분 체인 인증서로 등록 시에도 순서에 영향을 받는지 테스트

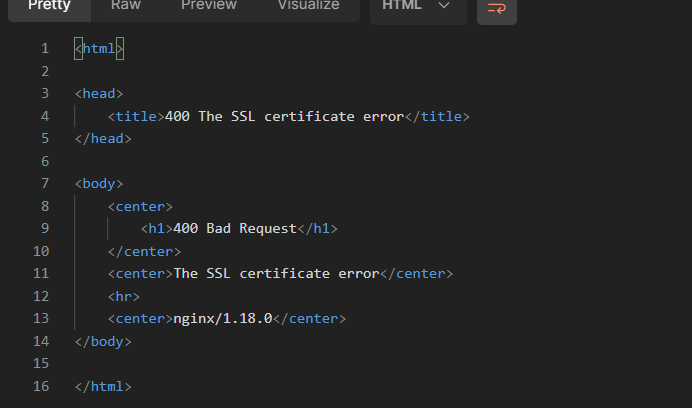

    • Postman 호출시 client_private.crt / client_private.key 사용 호출 실패




    • Postman 호출 시 server_private.crt / server_private.key 사용 호출 실패 (왜 ㅜㅜ)




>>> 내용 읽어보면 조금 다른 ..


Reverse Invoke 테스트 추가 노트 작성



+) external gateway 앞에 Nginx 가 있는 형태로 구성 (X)

=> EGS - GW 로 구성
